TMN-01


TMN-01

0.00

Cap Tip Monitoring System (Joint Development with KEYLEX Co Ltd.,)

Add To Cart

Feature

  1. Picture management by camera photography
  2. Cap tip images are analyzed and distinguished by photo data.
  3. Analyzed data enable traceability
  4. Compact design for narrow manufacturing line

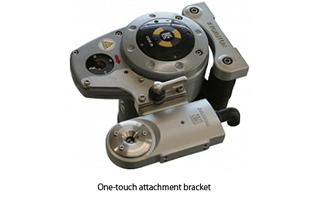

  5. One-touch attachment bracket(Option)
  6. 15 units of tip monitor can be connected per each computer
  7. Device network or CC ling are used for control regulation

 【Accessories】 Software
※Necessary equipment: Computer、POE hub、I/F board for Device network/CC link、LAN cable

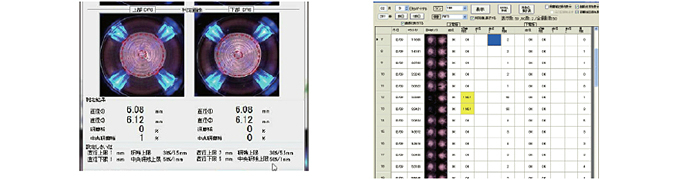

Software Picture

Specification

Power : 48V(Supply from PoE hub)
Consumed power : Less than 120mA ※Correspond to TypeA、TypeB for PoE hub
IP address setting(Changeable with software): Network transmission setting with software
Operation temperature : Within 0~40℃ environment
Operation humidity : Less than 90%(No bedewing)
Weight : 780g

Option
